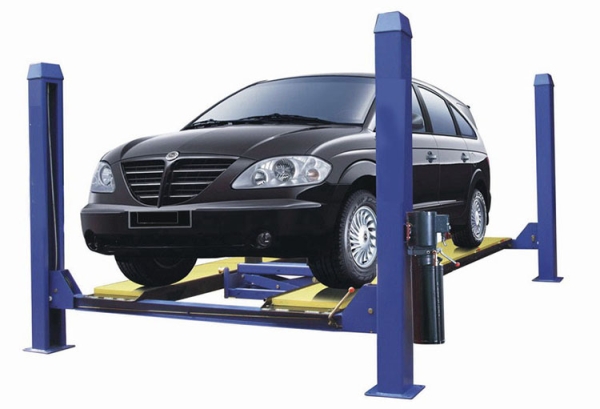

3.5T Wheel Positioning Four Post Car Lift
Wheel Positioning Four Post Car Lift
1.Manual mechanical unlock ,easy and convenient.
2.Adopt the hydraulic lock and the main insurance positioning structure and the rope breaking resistant insurance mechanism multiple-safety device safe and reliable.
3.Adopt the hydraulic failure and overload safety valve protection ,in the event of rope breaking and insurance mechanism failure ,the machine cannot be decreased rapidly.
4.The lengthened double-level rear sliding plate,the position of front wheel turn plate can be adjusted,the secondary lifting trolley’s sliding rail a number of secondary lifting trolleys are optional.
5.Adopt the secondary lifting trolley’s sliding rail, a number of secondary lifting trolleys are optional.
6.Platform horizontal adjustment is very convenient, precise, adapt to all kinds of high precision four-wheel positioning detection；
7.The inside distance of adjustable lifting platform for different vehicles with different treads.
8.Pass 115% dynamic and 150% static testing.
9.Comply with the European Union CE safety standards.
|
型號 |
Model |
SP-I3500 |
|
舉升重量 |
Lifting weight |
3500kg |
|
舉升高度 |
Lifting height |
1700mm |
|
最低高度 |
Minimum height |
160mm |
|
總長度 |
Overall length |
5550mm |
|
總寬度 |
Overall width |
3250mm |
|
立柱內寬 |
Columns within wide |
2800mm |
|
單車道寬度 |
Runway plate wide |
510mm |
|
車道間距 |
Width between runway |
900-1050mm |
|
二次舉升高度 |
Secondary lifting height |
970-540mm |
|
立柱高度 |
Post height |
2000mm |
|
上升時間 |
Lifting time |
60s |
|
下降時間 |
Falling time |
50s |
|
電機功率 |
Motor power |
2.2kw |
|
電源電壓 |
Power voltage |
380V/415V |
